Delco Remy 28SI™ High Output Brush Type Alternator
The 28SI high output alternator was designed to address vehicle applications that require higher electrical output, but also want lower weight, improved temperature capability, and fuel savings. Vehicles, such as school buses, not using a premium high output alternator will likely experience premature failures due to high under-hood engine temperatures. The 28SI brush style alternators are designed with dual internal fans which provide maximum cooling technology, improves the operating efficiency and durability of the unit. The 28SI comes standard with Remote Sense and is available in outputs ranging from 160 to 200 amps. The 28SI is available in short J180 hinge, long J180 hinge, and pad mounting configurations.
FIND A PART
Quick Links
Download Brochure
Download Brochure (Spanish)
Installation Instructions
Service Parts
Specifications
| Performance Output |
12 Volt 160, 180, & 200 Amps
24 Volt 110 Amps |
| Maximum Speed |
10,000 RPM Continuous
12,000 RPM Intermittent |
| Rotation |
Clockwise |
| Temperature Rating |
125°C / 257°F |
| Mounting |
J180 Short Hinge
J180 Long Hinge
Pad |
| Polarity |
Negative Ground |
| Efficiency |
12 Volt 66%
24 Volt 76% |
| Weight |
18.7 lbs / 8.5 kg |
| Stator Diameter |
5.67 in / 144 mm |
| Length |
9.27 in / 235.6 mm |
| Remote Sense |
Standard |
Warranty
*(US /Canada Only) |
1 year / unlimited miles
2 year / unlimited miles - School Bus |

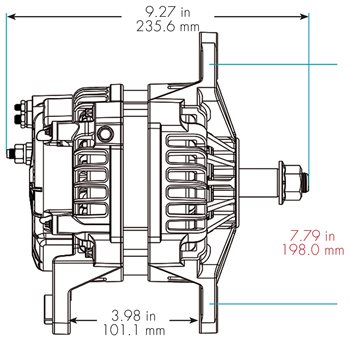

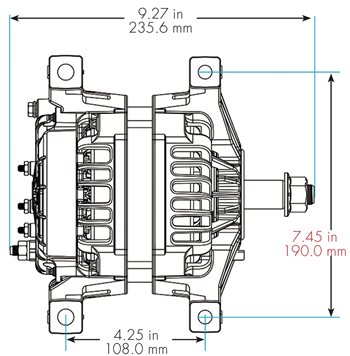

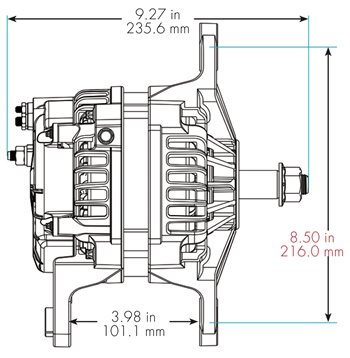

Dimensions
