Delco Remy 23SI™ Brushless Alternator
The 23SI™ is a brushless alternator designed for construction, industrial, medium or heavy duty applications. The 23SI is offered in 12 volt outputs up to 145 Amps and 24 volt up to 70 Amps. The 23SI is available in J180 and pad mounting configurations.
FIND A PART
Quick Links
Installation Instructions
Specifications
| Performance Output |
12 Volts 100, 130 & 145 Amps
24 Volts 50 & 70 Amps |
| Maximum Speed |
10,000 RPM Continuous
12,000 RPM Intermittent |
| Rotation |
Clockwise |
| Temperature Rating |
93°C / 200°F |
| Mounting |
J180 Hinge
Pad |
| Polarity |
Negative Ground |
| Weight |
19.1 lbs / 8.7 kg |
| Length |
9.75 in / 247.5 mm |
Warranty
*(US /Canada Only) |
1 year / unlimited miles |

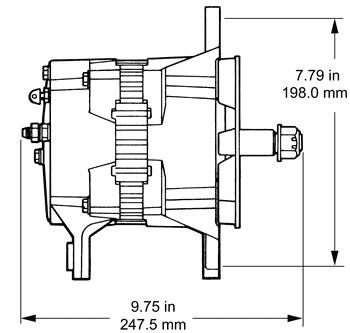

Dimensions
