| Engine Size |
up to 6.5L |
| System Voltage |
12 or 24 Volts |
| Rotation |
Clockwise |
| Mounting |
SAE #1, SAE #3, Pad |
| Pinion |
9 Tooth, MOD 3 (Metric)
10 Tooth, 8-10 Pitch
10 Tooth, 10-12 Pitch
12 Tooth, 8-10 Pitch |
| Peak Output |
12 Volt 2.9 kW
24 Volt 4.0 kW |
| Battery Internal Resistance |
12 Volt 2.8 mOhms
24 Volt 8.6 mOhms |
| Weight |
18.5 lbs / 8.4 kg |

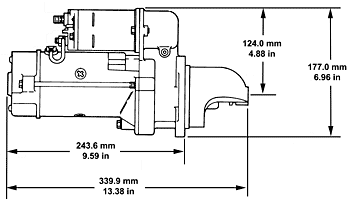

| Frame Diameter |
3.5 in / 90 mm |
| Overall Length |
13.46 in / 342 mm |
| Motor Type |
Wound Field
Planetary Gear |
| Pinion Support |
Noseless |
| Drive Design |
Positive Shift |
| Optional Features |
Jump-Start Protection
(meets SAE J1493)
Wet Clutch Application |
Warranty
*(US/Canada Only) |
1 year / unlimited miles |
