Delco Remy 34SI™ Heavy Duty Brushless Alternator
The Delco Remy 34SI is a brushless alternator designed for medium and heavy duty applications and performs well in high vibration applications generating the standard of quality and performance. The absence of moving electrical connections eliminates sparks. The 34SI has excellent radio frequency interference (RFI) suppression with very little parasitic draw and a low turn-on speed. A special coating protects the electronics from dirt, road salt and other corrosives.
FIND A PART
Quick Links
Installation Instructions
Service Parts
Specifications
| Performance Output |
12 Volts 110 & 135 Amps
24 Volts 75 & 100 Amps |
| Maximum Speed |
10,000 RPM Continuous
12,000 RPM Intermittent |
| Rotation |
Clockwise
Counterclockwise |
| Temperature Rating |
93°C / 200°F |
| Mounting |
Quad
Pad |
| Polarity |
Negative Ground (Standard)
Isolated Ground (Available) |
| Efficiency |
60% |
| Weight |
25.4 lbs / 11.5 kg |
| Stator Diameter |
5.98 in / 152 mm |
| Length |
10.35 in / 263 mm |
Warranty
*(US /Canada Only) |
1 year / unlimited miles |

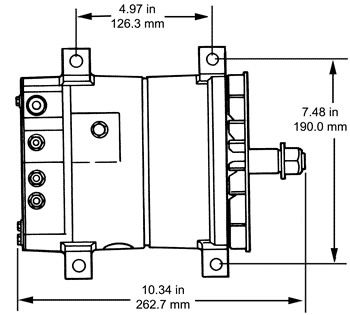

Dimensions
