Delco Remy 50MT™ Heavy Duty Straight Drive Starter
The 50MT is a straight drive starter for heavy duty and industrial applications. The 50MT is available in 12, 24, 32, and 64 volt models and can start engines with displacement up to 29.5 liters.
FIND A PART
Quick Links
Installation Instructions
Service Parts
Specifications
| Engine Size |
up to 29.5L |
| System Voltage |
12, 24, 32 or 64 Volts |
| Rotation |
Clockwise
Counterclockwise |
| Mounting |
SAE #3 |
| Pinion |
11 Tooth, 6-8 Pitch
12 Tooth, 8-10 Pitch
12 Tooth, MOD 3 (Metric) |
| Peak Output |
12 Volt 8.5 kW
24 Volt 9.0 kW
32 Volt 13.0 kW
64 Volt 12.0 kW |
| Battery Internal Resistance |
12 Volt 2 mOhm
24 Volt 8 mOhm
32 Volt 11 mOhm
64 Volt 40 mOhm |
| Weight |
79.0 lbs / 35.8 kg |
| Frame Diameter |
5.59 in / 142 mm |
| Overall Length |
20.40 in / 518.2 mm |
| Motor Type |
Wound Field
Straight Drive |
| Pinion Support |
Nose |
| Drive Design |
Rotatable Drive Housing
Positive Engagement
Rubber Shock Absorber |
| Optional Features |
Jump-Start Protection
(meets SAE J1493) |
Warranty
*(US/Canada Only) |
1 year / unlimited miles |

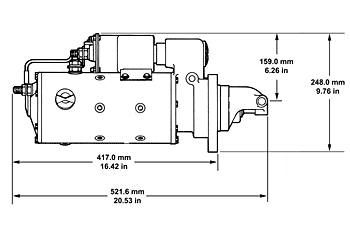

Dimensions
