| Engine Size |
12 Volt up to 10.0L
24 Volt up to 12.0L |
| System Voltage |
12 or 24 Volts |
| Rotation |
Clockwise |
| Mounting |
SAE #1, SAE #3 |
| Pinion |
10 Tooth, 8-10 Pitch
11 Tooth, MOD 3 (Metric)
12 Tooth, 8-10 Pitch |
| Peak Output |
12 Volt 4.3 kW
24 Volt 7.8 kW |
| Battery Internal Resistance |
12 Volt 4 mOhm
24 Volt 10 mOhm |
| Weight |
22.0 lbs / 10.0 kg |
| Frame Diameter |
3.9 in / 100 mm |

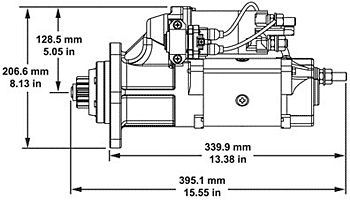

| Overall Length |
15.55 in / 395.1 mm |
| Motor Type |
Wound Field
Planetary Gear |
| Pinion Support |
Noseless |
| Drive Design |
Electrical Soft Start
Overrunning Clutch |
| Optional Features |
Over-Crank Protection |
Warranty
*(US/Canada Only) |
1 year / unlimited miles |
