Delco Remy 38MT+™ Heavy Duty Gear Reduction Starter
The 38MT+ is a gear reduction starter designed to fit PACCAR MX 11 and 13 Liter engines. The 38MT+ provides faster cranking speeds in a lighter package compared to the competition. Available with Integrated Over-Crank Protection (IOCP), a built-in circuit breaker, protects the starter from thermal damage, automatically resetting at a safe operating temperature while eliminating the need for a wiring harness. The IOCP protects the starter in adverse starting conditions, such as cold weather cranking, lower battery capacity, high starting circuit resistance or operator misuse.
FIND A PART
Quick Links
Download Brochure
Download Brochure (Spanish)
Specifications
| Engine Size |
up to 13.0L |
| System Voltage |
12 Volts |
| Rotation |
Clockwise |
| Mounting |
SAE #3 |
| Pinion |
12 Tooth, MOD 3 (Metric) |
| Peak Output |
4.3 kW |
| Battery Internal Resistance |
4 mOhm |
| Weight |
28.44 lbs / 12.9 kg |
| Frame Diameter |
3.9 in / 100 mm |
| Overall Length |
13.74 in / 349 mm |
| Motor Type |
Wound Field
Planetary Gear |
| Pinion Support |
Noseless |
| Drive Design |
Electrical Soft Start |
| Optional Features |
Integrated Over-Crank Protection |
Warranty
*(US/Canada Only) |
1 year / unlimited miles - non OCP
3 year / unlimited miles - OCP |

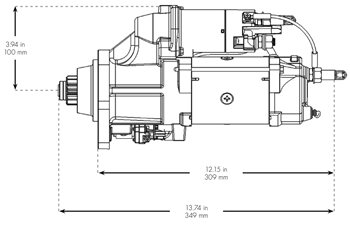

Dimensions
