| Engine Size |
up to 9.0L |
| System Voltage |
12 or 24 Volts |
| Rotation |
Clockwise
Counterclockwise |
| Mounting |
SAE #1, SAE #3 |
| Pinion |
10 Tooth, 8-10 Pitch
11 Tooth, MOD 3 (Metric)
12 Tooth, 8-10 Pitch |
| Peak Output |
12 Volt 4.6 kW
24 Volt 7.0 kW |
| Battery Internal Resistance |
12 Volt 4 mOhm
24 Volt 8 mOhm |
| Weight |
50.0 lbs / 22.7 kg |
| Frame Diameter |
5.12 in / 130 mm |

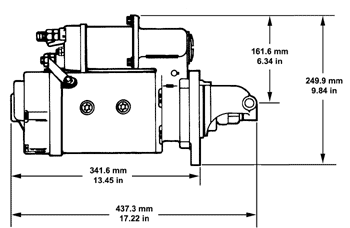

| Overall Length |
Grounded 15.79 in / 401.1 mm
Insulated 17.04 in / 432.8 mm |
| Motor Type |
Wound Field
Straight Drive |
| Pinion Support |
Nose |
| Drive Design |
Rotatable Drive Housing
Positive Shift |
| Optional Features |
Jump-Start Protection
(meets SAE J1493)
|
Warranty
*(US/Canada Only) |
1 year / unlimited miles |
