Heavy Duty Alternator

21SITM and 22SITM Alternator Core Identification

Use this page to help identify the correct core group for your core returns.  If you know the part number, please visit our e-catalog for model family idenfication.

21SI Alternator Core


Click to Enlarge
21SI rear cover without name.

Click to Enlarge

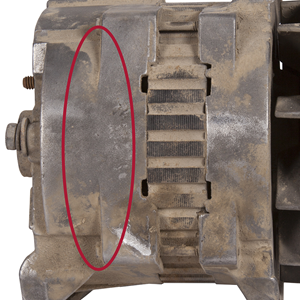

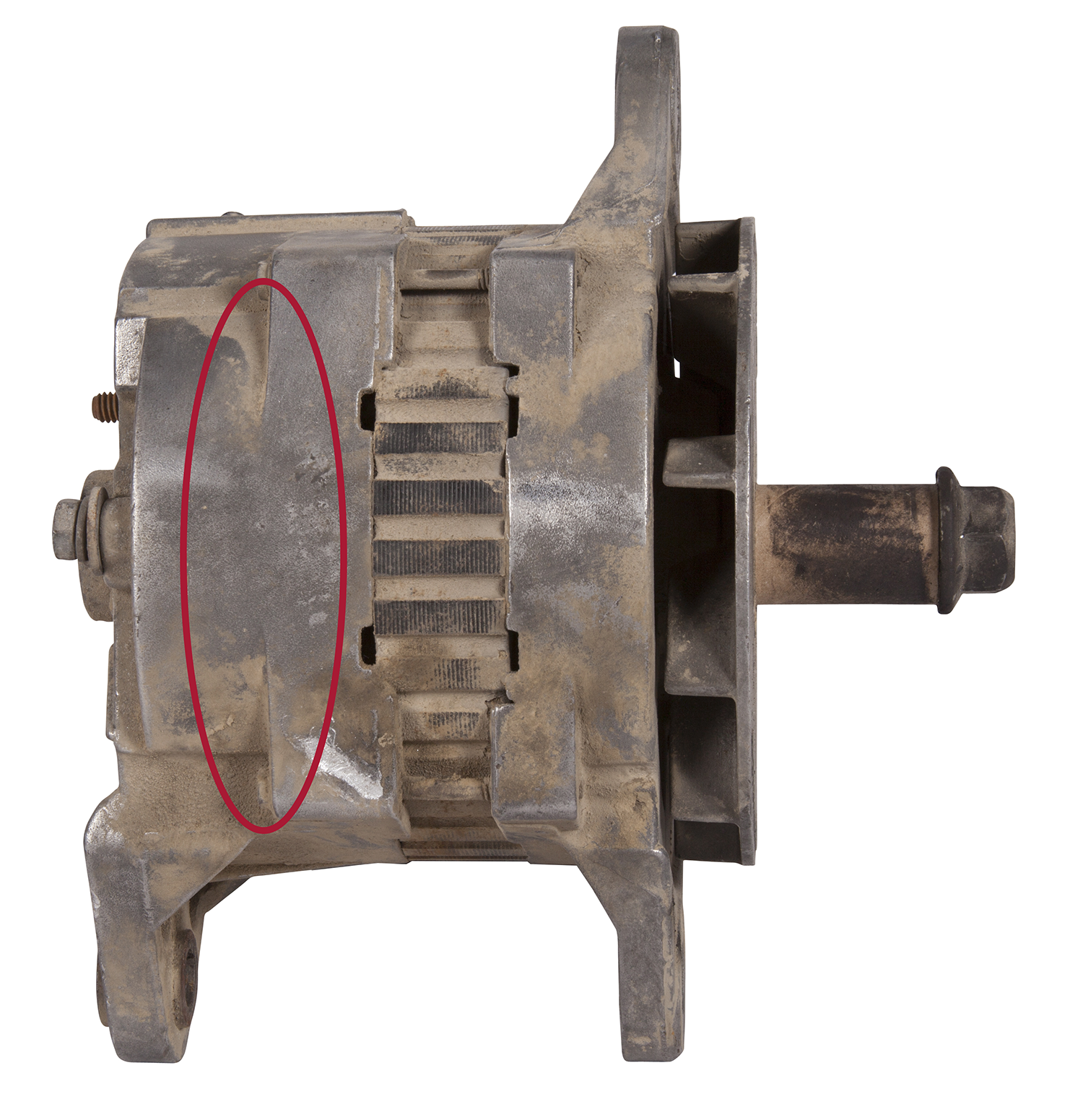

21SI casting smooth side.



22SI Alternator Core


Click to Enlarge

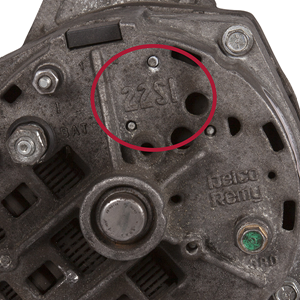

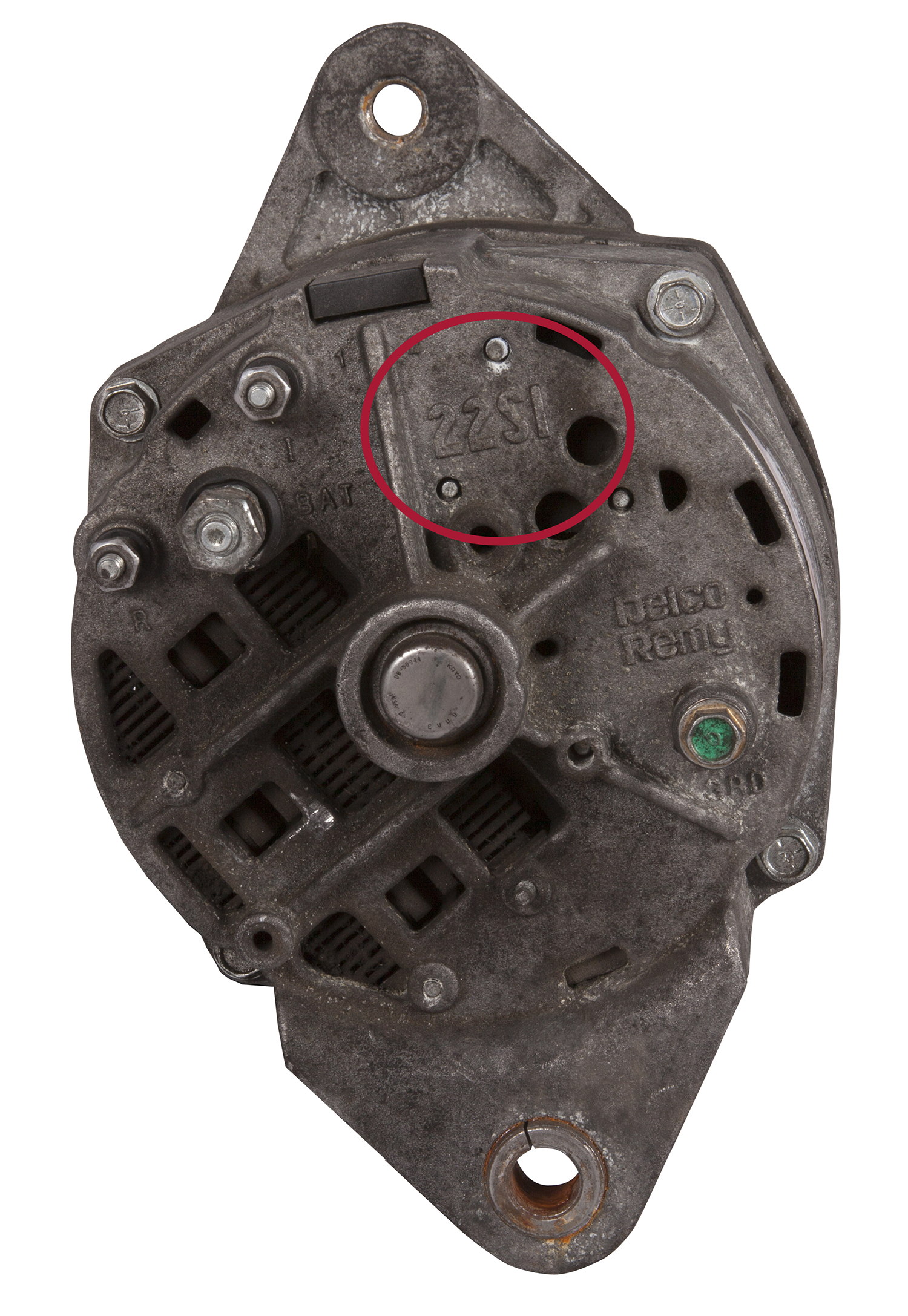

22SI rear cover with name.


Click to Enlarge

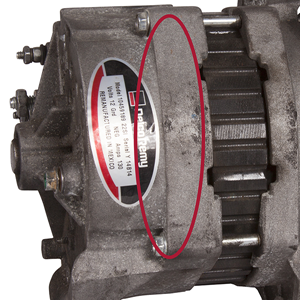

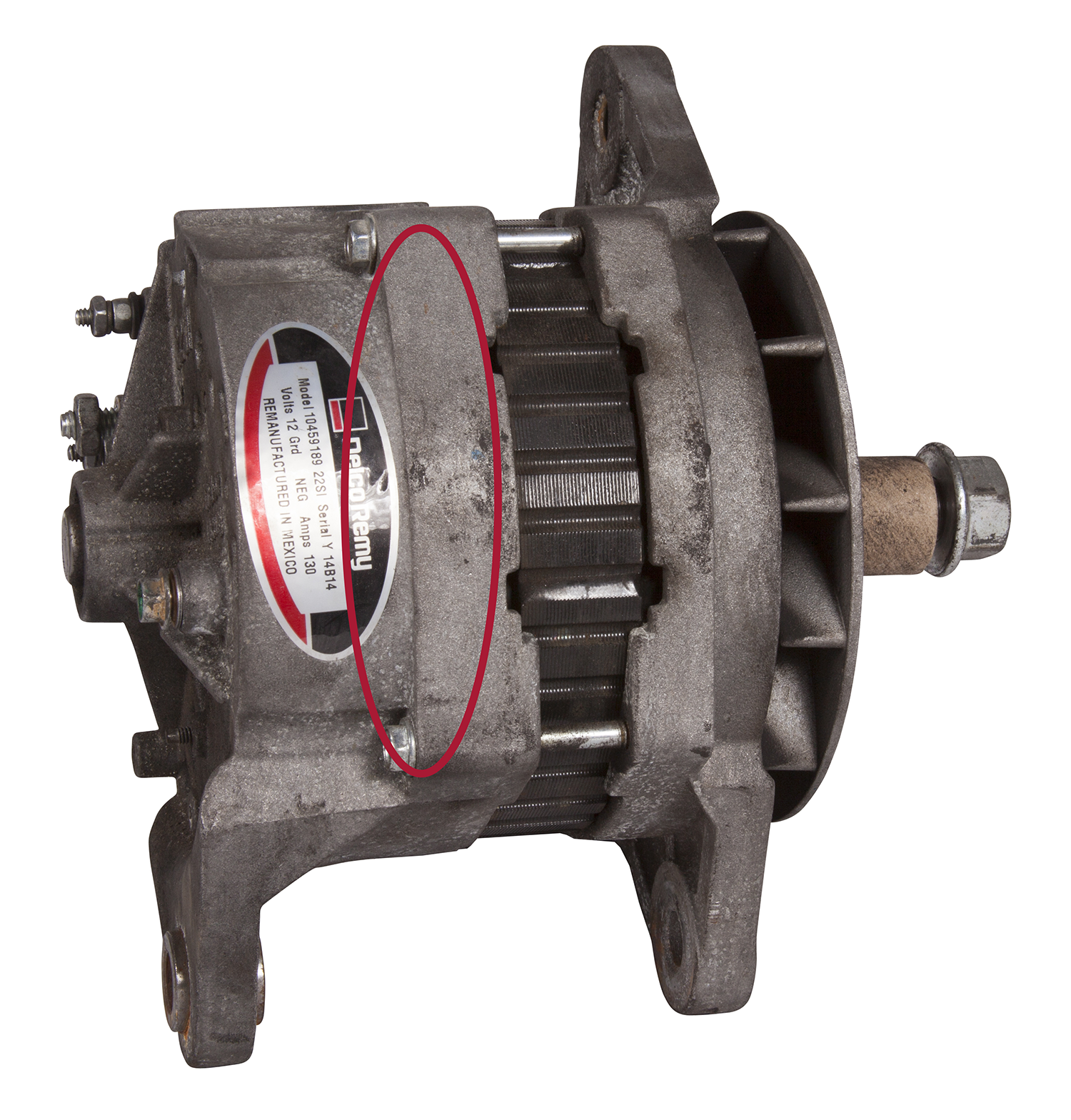

21SI casting smooth side.
