Delco Remy 35MT™ Medium Duty Gear Reduction Starter
The 35MT is a gear reduction starter for medium duty applications providing more power in a smaller package with patented technology to reduce corrosion and vibration issues. The 35MT features a patented internal magnetic switch solenoid (IMSS) eliminating the need for an IMS switch.
FIND A PART
Quick Links
Download Brochure
Download Brochure (Spanish)
Service Parts
Specifications
| Engine Size |
12 Volt up to 9.0L |
| System Voltage |
12 Volts |
| Rotation |
Clockwise |
| Mounting |
SAE #1, SAE #3 |
| Pinion |
10 Tooth, 8-10 Pitch
12 Tooth, 8-10 Pitch |
| Peak Output |
4.3 kW |
| Battery Internal Resistance |
4 mOhm |
| Weight |
22.0 lbs / 10.0 kg |
| Frame Diameter |
3.74 in / 95 mm |
| Overall Length |
13.98 in / 355 mm |
| Motor Type |
Wound Field
Planetary Gear |
| Pinion Support |
Noseless |
| Drive Design |
Electrical Soft Start |
Warranty
*(US/Canada Only) |
1 year / unlimited miles |

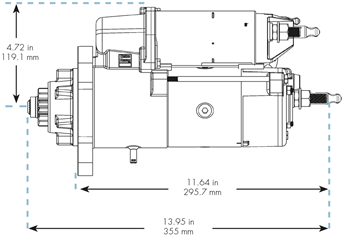

Dimensions
